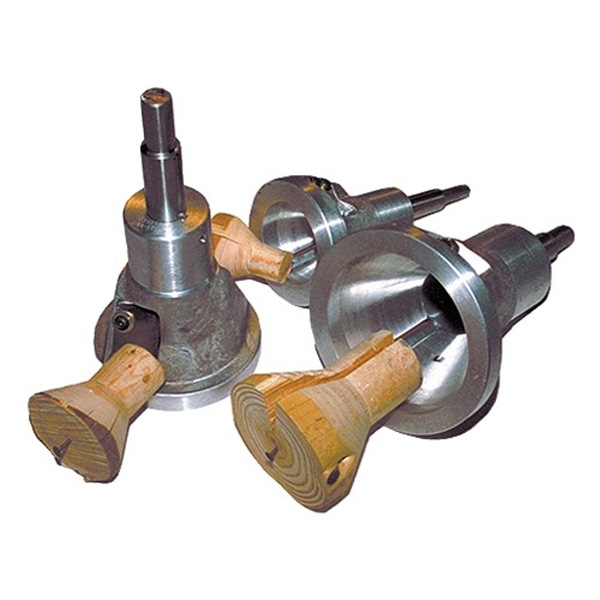

Northwest Tenon Cutters

Tenon Cutters are the tools that cuts tenons on the end of your log rails and spindles. For log stair rails, use the 2 inch size Tenon Cutter. Northwest Tenon Cutters require the use of 1/2 inch or 3/4 inch drill, depending on size of cutter. Two high carbon steel blades flares the log  end about 60 degrees. The two smallest sized Tenon Cutters have 1/2 inch shafts; the other sizes have 3/4 inch shafts. Use a 3/4 inch electric drill to power the 1-1/2 inch, 2 inch, and 2-1/2 inch tenon cutters because the drill should have a maximum of 500 RPM for both safety and limiting tool overload. Cast aluminum. Made in the USA. Northwest Tenon Cutter Operating instructions. Tenon Cutter Adjustable

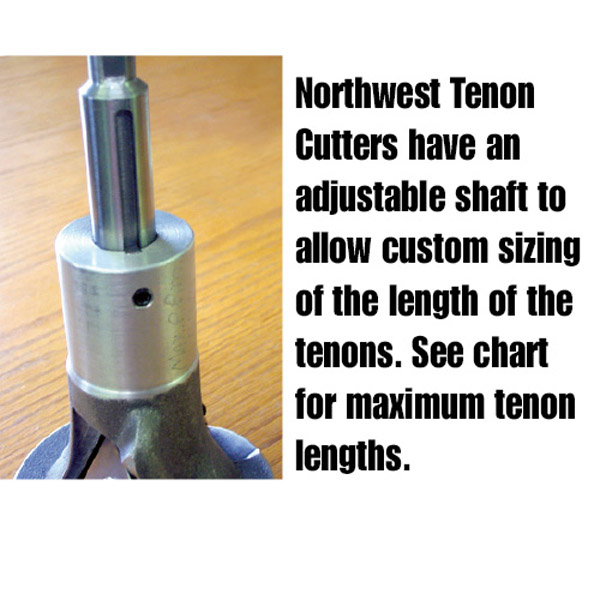

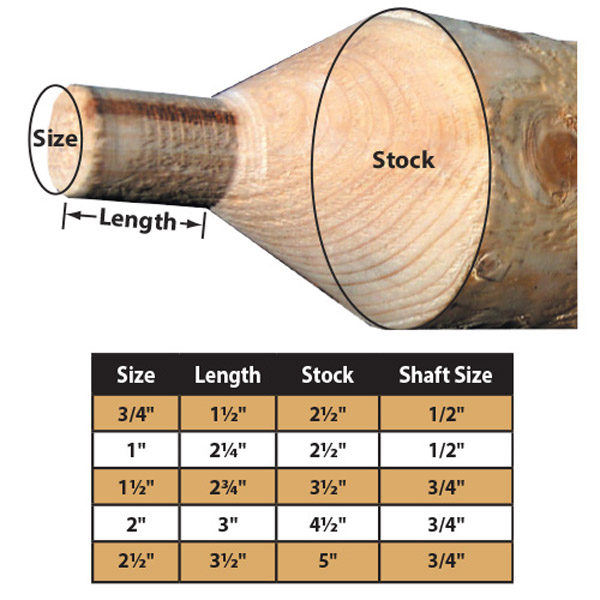

Northwest Tenon Cutters have an adjustable shaft to allow custom sizing of the length of the tenons. See chart for maximum tenon lengths.



  • NW-TenonCutters
Add to Cart Below

Options

SKU: Name Price Qty Pricing UoM Quantity
T148-TC1 Northwest Tenon Cutters - 1"$425.00
Qty Pricing EACH
T148-TC1-1/2 Northwest Tenon Cutters - 1-1/2"$445.00
Qty Pricing EACH
T148-TC2 Northwest Tenon Cutters - 2"$490.75
Qty Pricing EACH
T148-TC2-1/2X5 Northwest Tenon Cutters - 2-1/2"$625.00
Qty Pricing EACH
T148-TC3/4 Northwest Tenon Cutters - 3/4"$425.00
Qty Pricing EACH
